Solar Panel Submersible Water Pump 4PSC ACDC
Model: 4PSC ACDC
Descriptions:
This 4PSC ACDC series is high performance Solar Panel Submersible Water Pump with 4” Plastic Impeller. The Solar Panel Submersible Water Pump is the answer to your irrigation and water source problems in remote locations. With a maximum head of 190 meters and an output of 600-2200W, this pump is a reliable, sustainable, and efficient solution for farming and household use.
Introduction:
We are excited to introduce the high-performance Solar Panel Submersible Water Pump product series 4PSC ACDC . This product range covers power ratings from 600W to 2200W, with a maximum 2inch outlet, 30 m3/h max flow. It can support deep well applications of over 190 meters.
Crafted with a 4'' AC/DC plastic impeller, this product is designed to resist damage and provide a consistent flow of water at all times. Its wide application range makes it perfect for agriculture irrigation, livestock water sources, and other uses that require a dependable source of clean water.
Powered by solar energy, this pump is renowned for its low carbon footprint and eco-friendliness. Not only does it save you money on energy bills, but it also helps to preserve the environment.
This product is perfect for families who want a reliable and eco-friendly source of water and farmers who want to optimize their farm irrigation. It performs well in harsh weather conditions, making it a perfect choice for remote regions.
Choose the Solar Panel Submersible Water Pump today and experience high-performance water pumping at an affordable price.
Features:
We provide one-stop solution for Solar Panel Submersible Water Pump system..
This brings more benefits to end users.
▷ Permanent magnet DC brushless motor, efficiency improved by 20~30%.
▷ Longer use life than normal electrical AC pump motor.
▷ High efficiency intelligent MPPT controller makes pump start and stop working automatically.
▷ Overload protection, over current protection, underload protection, under voltage protection, reverse
connect protection, thermal protection, well shortage water protection, soft start.
▷ Controller LED screen displays voltage, current, power, speed RPM, adjusting speed, error code.
▷ Controller waterproofing grade IP54.
▷ Ambient temperature: -15~70 °C.
Hot Tags: solar panel submersible water pump, China solar panel submersible water pump manufacturers, suppliers, factory, Solar Submersible Pump Set, DC Submersible Deep Well Pump, Solar Borewell Pump, Solar Submersible Water Pump For Agriculture, DC Submersible Solar Water Pump, Small Solar Submersible Water Pump

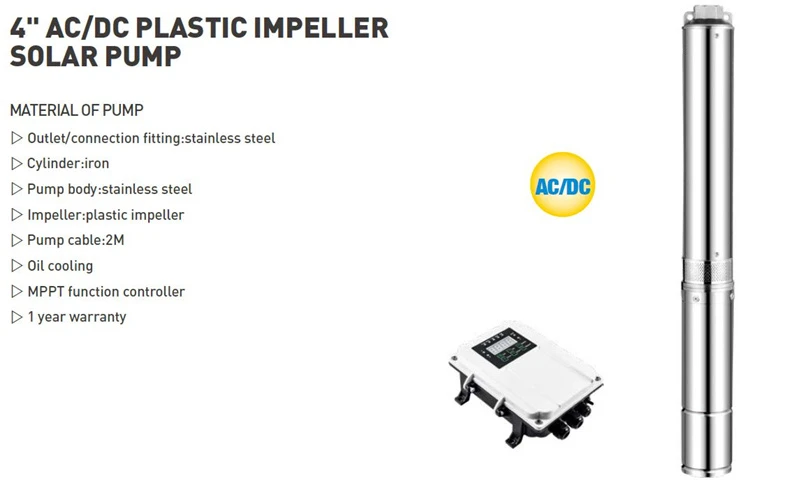

4''AC/DC PLASTIC IMPELLER SOLAR PUMP
| MODEL NO. | MAX FLOW (M3) | MAX HEAD (M) | VOLTAGE(V) | POWER(W) |
| 4PSC3.5-70-72-600-H | 3.5 | 70 | 72 | 600 |
| 4PSC3.5-90-96-750-H | 3.5 | 90 | 96 | 750 |
| 4PSC3.5-120-144-1100-H | 3.5 | 120 | 144 | 1100 |
| 4PSC4.5-130-192-1500-H | 4.5 | 130 | 192 | 1500 |
| 4PSC4.5-190-280-2200-H | 4.5 | 190 | 280 | 2200 |
| 4PSC6.0-40-72-600-H | 6.0 | 40 | 72 | 600 |
| 4PSC6.5-55-96-750-H | 6.5 | 55 | 96 | 750 |
| 4PSC6.5-85-144-1100-H | 6.5 | 85 | 144 | 1100 |
| 4PSC7.0-110-192-1500-H | 7.0 | 110 | 192 | 1500 |
| 4PSC7.5-150-280-2200-H | 7.5 | 150 | 280 | 2200 |
| 4PSC9.0-30-72-600-H | 9.0 | 30 | 72 | 600 |
| 4PSC9.0-35-96-750-H | 9.0 | 35 | 96 | 750 |
| 4PSC9.0-60-144-1100-H | 9.0 | 60 | 144 | 1100 |
| 4PSC10.0-90-192-1500-H | 10.0 | 90 | 192 | 1500 |
| 4PSC10.0-130-280-2200-H | 10.0 | 130 | 280 | 2200 |
| 4PSC13.0-30-96-750-H | 13.0 | 30 | 96 | 750 |
| 4PSC14.0-45-144-1100-H | 14.0 | 45 | 144 | 1100 |
| 4PSC14.5-70-192-1500-H | 14.5 | 70 | 192 | 1500 |
| 4PSC14.5-100-280-2200-H | 14.5 | 100 | 280 | 2200 |
| 4PSC20.0-45-192-1500-H | 20.0 | 45 | 192 | 1500 |
| 4PSC20.0-65-280-2200-H | 20.0 | 65 | 280 | 2200 |
| 4PSC30.0-35-280-2200-H | 30.0 | 35 | 280 | 2200 |
