DC Powered Submersible Deep Well Pump
Description
Technical Parameters

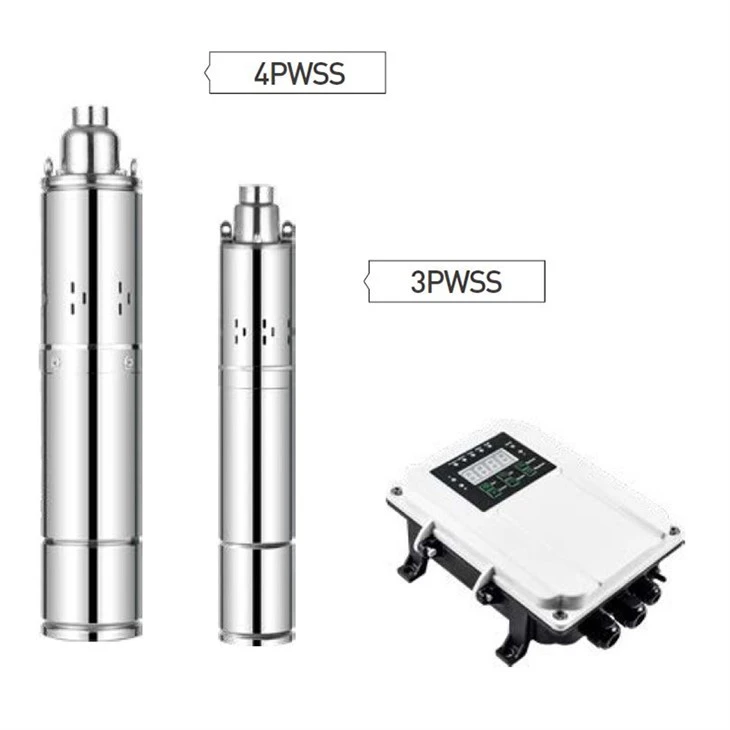

DC powered submersible deep well pump PWSS
Model: PWSS

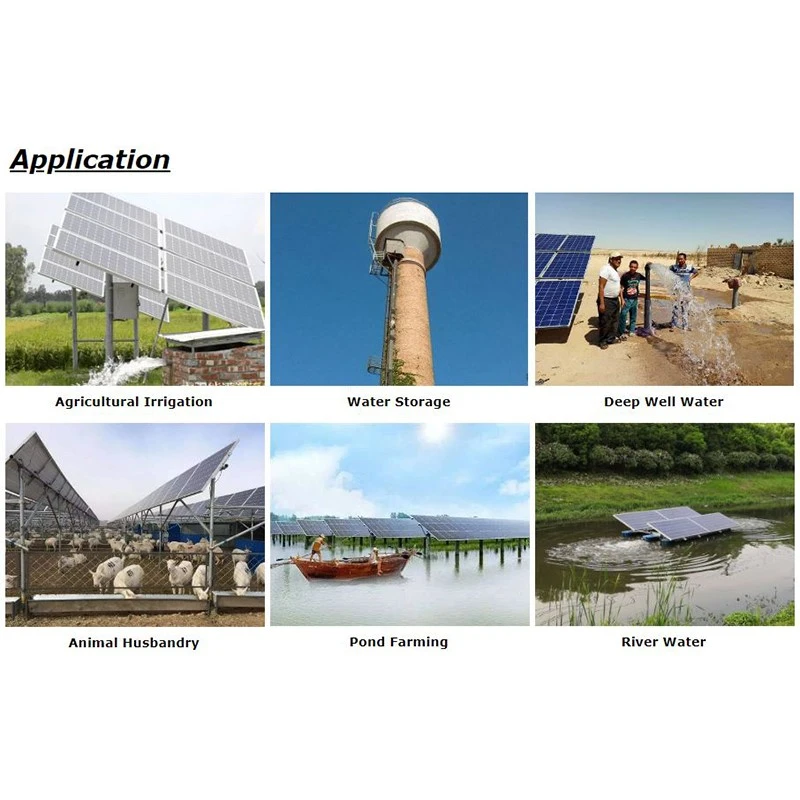

This PWSS series is high performance DC powered submersible deep well pump, it is especially good for deep well scenarios. This DC Powered submersible Deep Well Pump System converts energy from the sun to run a DC powered pump. The energy generated supplies off-grid electric power to operate and control well pumps for irrigation or to provide a livestock water source in remote locations. The amount of run time the pump is on can be controlled by the optional level float switch (shown) or any other manual or automatic switch you provide.
Introduction:

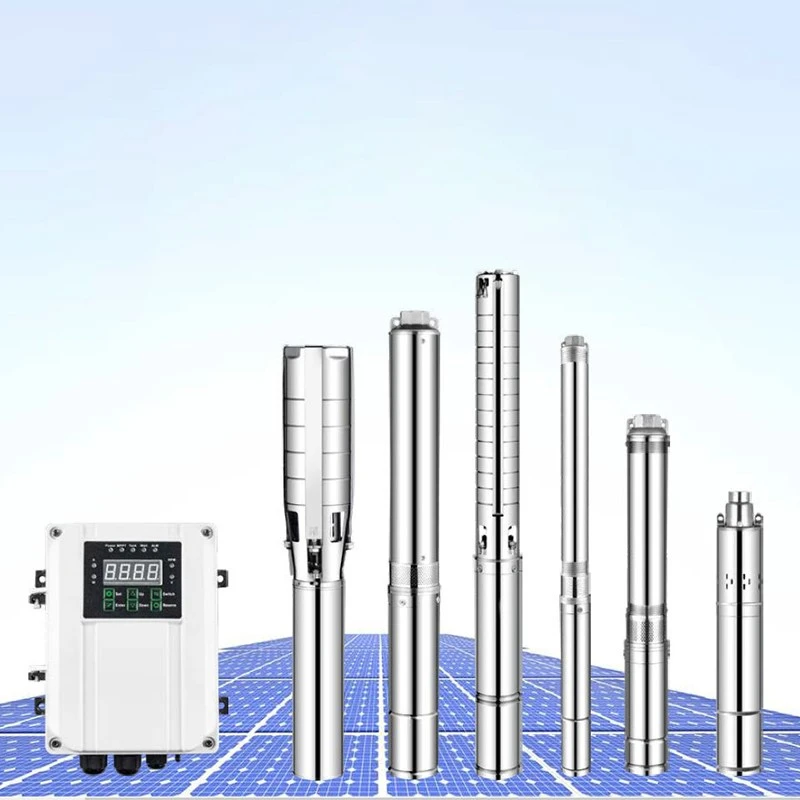

We are excited to introduce the high-performance DC powered submersible deep well pump product series PWSS . This product range covers power ratings from 180W to 3000W, with a maximum 3inch outlet, 40m3/h max flow. It can support deep well applications of over 250 meters, empowering agricultural users worldwide with irrigation for crop cultivation. The DC powered submersible deep well pump is driven by solar clean energy. It can be installed and used in the remote areas where we don't have easy access to electricity (like mountain, desert, island and middle of the farm).
Features:

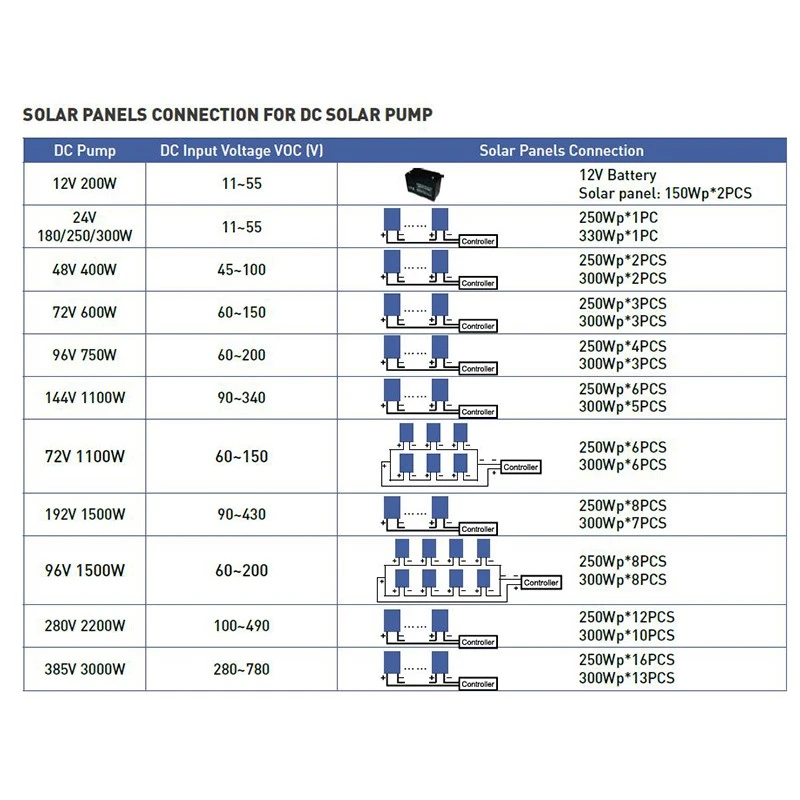

We provide one-stop solution for solar powered submersible well pump system..
This brings more benefits to end users.

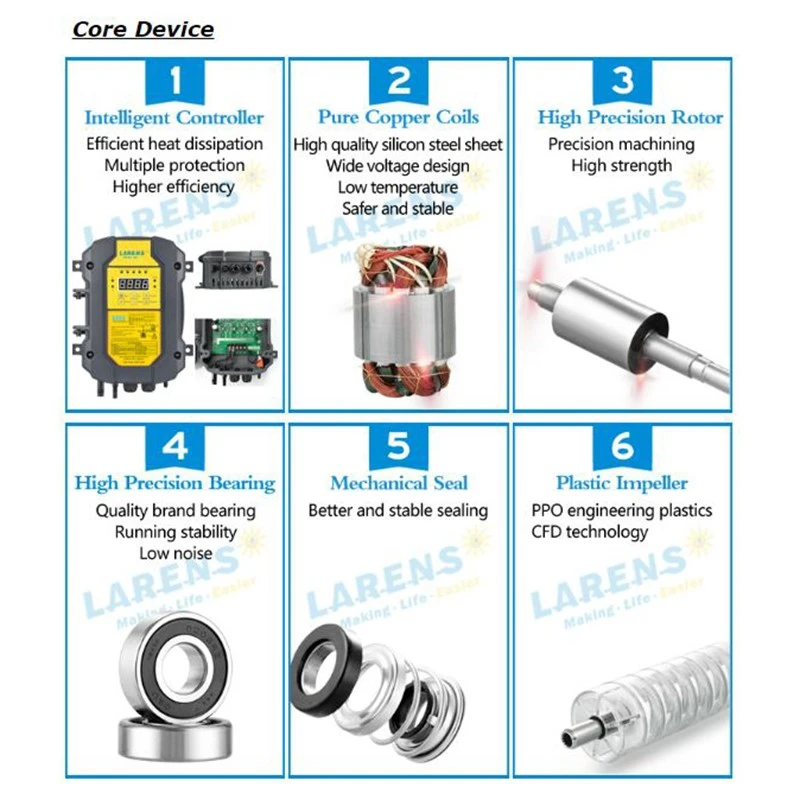

▷ Permanent magnet DC brushless motor, efficiency improved by 20~30%.
▷ Longer use life than normal electrical AC pump motor.
▷ High efficiency intelligent MPPT controller makes pump start and stop working automatically.
▷ Overload protection, over current protection, underload protection, under voltage protection, reverse connect protection, thermal protection, well shortage water protection, soft start.

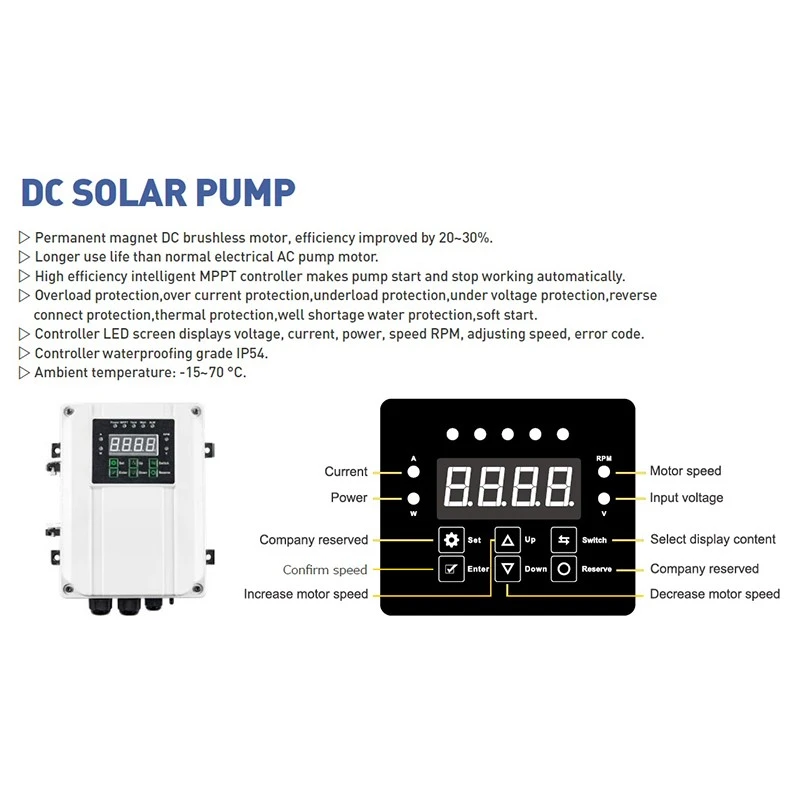

▷ Controller LED screen displays voltage, current, power, speed RPM, adjusting speed, error code.
▷ Controller waterproofing grade IP54.
▷ Ambient temperature: -15~70 °C.
Hot Tags: dc powered submersible deep well pump, China dc powered submersible deep well pump manufacturers, suppliers, factory, Solar Mini Submersible Water Pump, Solar Submersible Pump Set, DC Submersible Solar Water Pump, AC DC Submersible Pump, Submersible Solar Water Pump For Fountain, Shining Pond Submersible Water Pump
| ITEM | DC INPUT VOLTAGE | Best Input Voltage | POWER | MAX FLOW | MAX HEAD | OUTLET |
| NO. | (V) | (V) | (W) | (M3/H) | (M) | (Inch) |
| 2PWSS1.2-45-24-180 | 24 | 11-55 | 180 | 1.2 | 45 | 0.75" |
| 2PWSS1.2-60-24-250 | 24 | 11-55 | 250 | 1.2 | 60 | 0.75" |
| 2PWSS1.5-90-48-400 | 48 | 45-100 | 400 | 1.5 | 90 | 0.75" |
| 2PWSS1.5-120-72-600 | 72 | 60-150 | 600 | 1.5 | 120 | 0.75" |
| 2PWSS1.7-140-96-750 | 96 | 60-200 | 750 | 1.7 | 140 | 0.75" |
| 2PWSS1.5-35-24-250 | 24 | 11-55 | 250 | 1.5 | 35 | 0.75" |
| 2PWSS1.5-60-48-400 | 48 | 45-100 | 400 | 1.5 | 60 | 0.75" |
| 2PWSS1.5-85-72-600 | 72 | 60-150 | 600 | 1.5 | 85 | 0.75" |

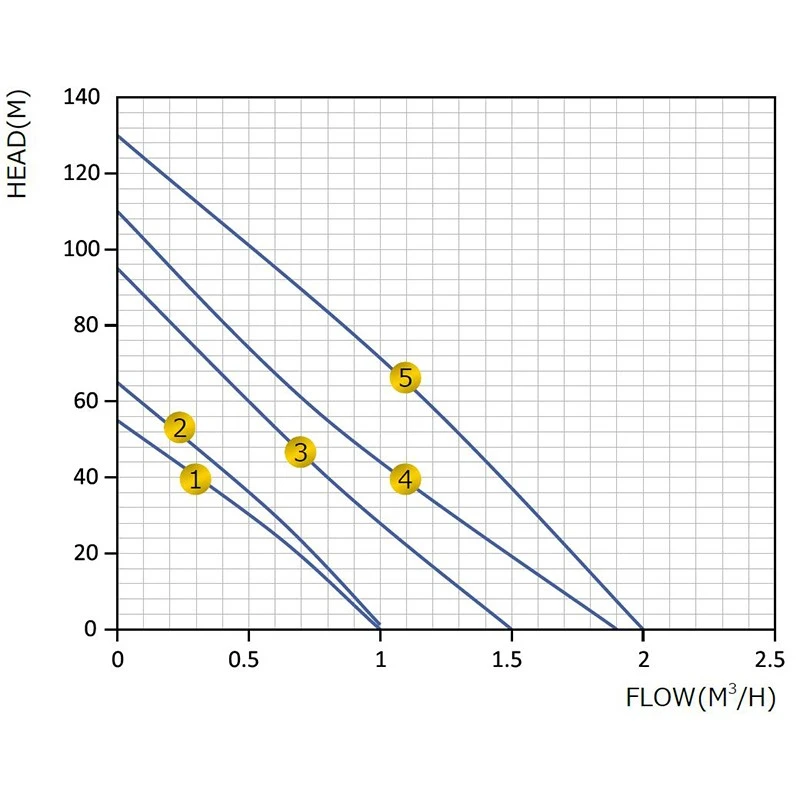

| 3PWSS1.0-55-24-180 | 24 | 11-55 | 180 | 1.00 | 55 | 0.75" |
| 3PWSS1.2-65-24-250 | 24 | 11-55 | 250 | 1.2 | 65 | 0.75" |
| 3PWSS1.5-95-48-400 | 48 | 45-100 | 400 | 1.5 | 95 | 0.75" |
| 3PWSS1.9-110-72-600 | 72 | 60-150 | 600 | 1.9 | 110 | 0.75" |
| 3PWSS2.0-130-96-750 | 96 | 60-200 | 750 | 2 | 130 | 0.76" |

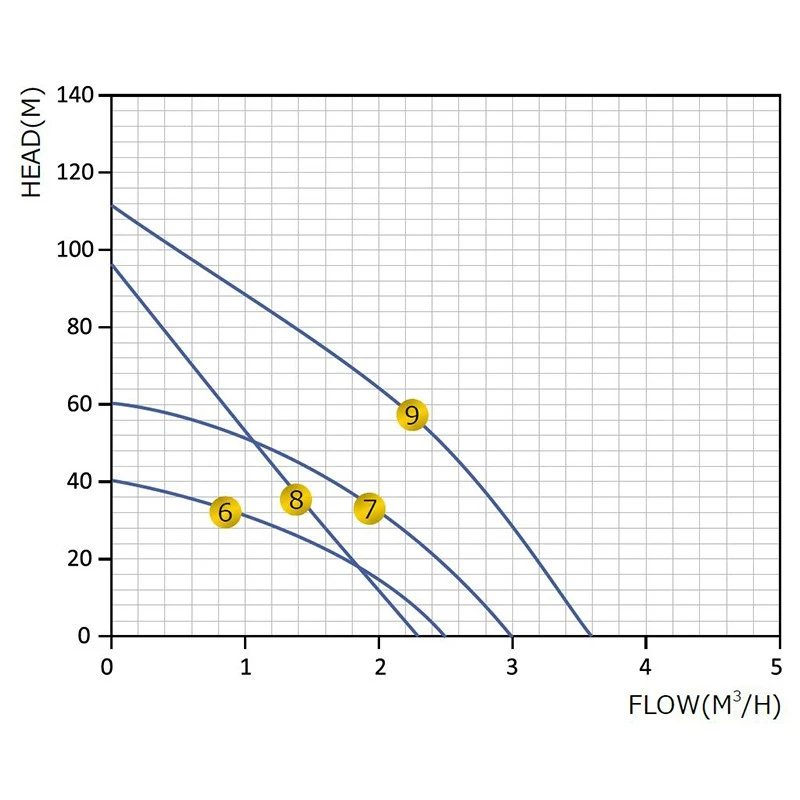

| 3PWSS2.5-40-24-250 | 24 | 11-55 | 250 | 2.5 | 40 | 1" |
| 3PWSS3.0-60-48-400 | 48 | 45-100 | 400 | 3 | 60 | 1" |
| 3PWSS2.3-95-72-600 | 72 | 60-150 | 600 | 2.3 | 95 | 1" |
| 3PWSS3.6-110-96-750 | 96 | 60-200 | 750 | 3.6 | 110 | 1" |
