Monocrystalline Perc Solar Panel

Monocrystalline Perc Solar Panel

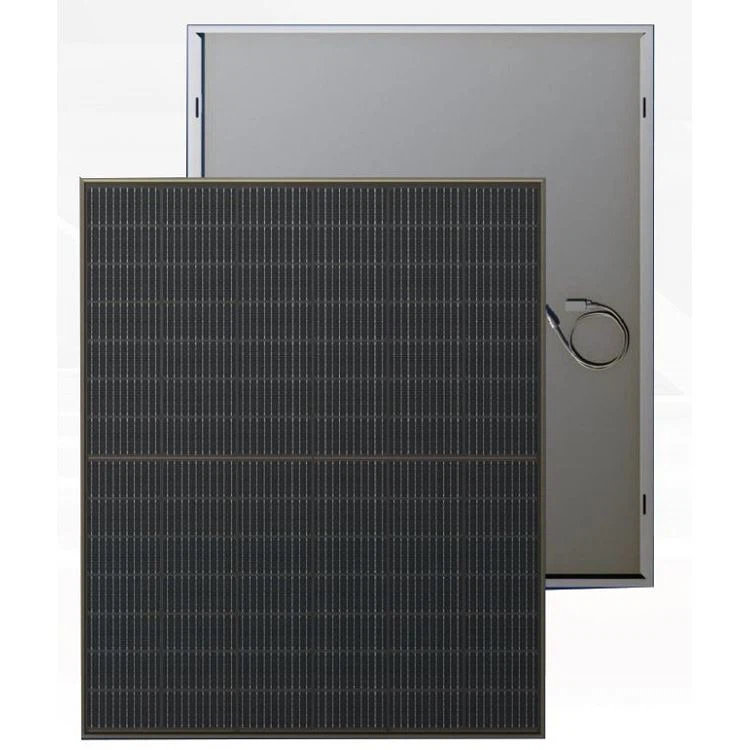

This amazing product is a Monocrystalline Perc Solar Panel with a powerful 310W capability, featuring a Mono 182 half piece 6*14 arrangement.
Send Inquiry
Add To Inquiry

Description

Technical Parameters

Monocrystalline Perc Solar Panel 310W

Model: Rigid solar panel 310W

Descriptions:

This amazing product is a Monocrystalline Perc Solar Panel with a powerful 310W capability, featuring a Mono 182 half piece 6*14 arrangement. It's designed to cater to off-grid solar photovoltaic systems, including balcony solar panels and photovoltaic water pumps. To meet the requirements of industry solar generator needs, it can be designed as a foldable pack. This product is a must-have for anyone who's keen on adopting sustainable energy solutions. It promises to be a game-changer in the solar industry and will undoubtedly inspire more people to embrace clean energy.



solar panel scenarios

solar panel architecture



Introduction:



We are elated to present our exceptional 310W Monocrystalline Perc Solar Panel to the market. Our product is specially designed to cater to the needs of homeowners and small commercial solar users with customized MPPT controller options. It is primarily utilized in off-grid applications, including balcony solar, LSEV charging stations, agricultural water pumps, agricultural lighting, village security, traffic lights, and recreational vehicles. We are thrilled to offer this top-of-the-line solar panel, which is sure to meet your needs and exceed your expectations.



solar panel installation 01

solar panel installation 02



Features:



We provide one-stop solution for balcony and other off grid solar application.

-All mechanical connections make the balcony solar system truly safe and reliable.

-All-black appearance, integrated with the building, very beautiful.

-Lightweight solar panel, weight per unit area is less than 8.5kg/m2.

-Multi-angle support, 0°-90° angle adjustment (accurate 5° adjustable ) to obtain the best solar module efficiency in various scenarios.

-With a sturdy and secure bracket, the whole system can withstand strong winds of level 12, and anti-hail level 4.

-Curved frame, easy to disperse rainwater and dust, increase the area exposed to sunlight.

-U-Hook plus bolt, matches railings of various balcony railing shapes while remaining compact at all times.

-The triangular support hanger, fixed to ensure that the solar panel body is firm and fastened.

-Two extension wires 1m and 2m are provided for flexible connection to microinverter.

-DIY Installation, you can easily fix the bracket on the balcony.



residential solar -balcony



Hot Tags: monocrystalline perc solar panel, China monocrystalline perc solar panel manufacturers, suppliers, factory, Mono PV Solar Panels, Mono Si Solar Panels, Mono Cell Solar Panel, Monocrystalline Solar Panel, Mono Crystalline Panel, Mono Silicon Solar Panels

310W specification and parameter
Siz 1133mm*1365mm*30mm
Exterior Clolor All black matte
Package type 2mm GLASS+POE+CELLS+POE+Balck back place
Solar Cell Mono 182 half piece6*14 arrangement
Peak Power(Pmax) 310W
Working current(Impp) 12.88A
Shortcut current(Isc) 13.69A
Open Circuit Voltage 28.6V
Working voltage(Umpp) 24.07V
Weight per unit area 8.5
Windproof rating Strong winds of level 12
Anti-hall rating Class 4(ANSI FM4473)
Component waterproof level IP67
Installation method Triangullar spport hanger fixed
