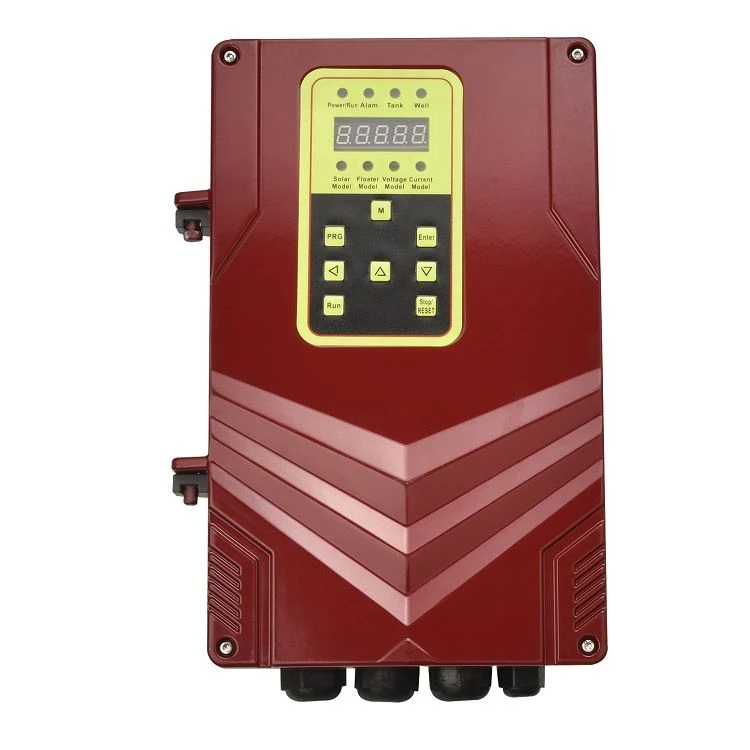

Borewell Solar Pump
video

Borewell Solar Pump

Our AC/DC Bore well solar pump is a high-speed and reliable solution for your family home, irrigation, and agricultural needs. Ranging in power from 4-22KW and 5.5-30HP, our pump is capable of meeting a wide range of pumping requirements.
Send Inquiry
Add To Inquiry

Description

Technical Parameters

Bore well solar pump 4HS30 ACDC

Model: 4HS30 ACDC

Descriptions:

This 4HS30 ACDC is high performance Bore well solar pump for deep well application.

Our AC/DC Bore well solar pump is a high-speed and reliable solution for your family home, irrigation, and agricultural needs. Ranging in power from 4-22KW and 5.5-30HP, our pump is capable of meeting a wide range of pumping requirements.

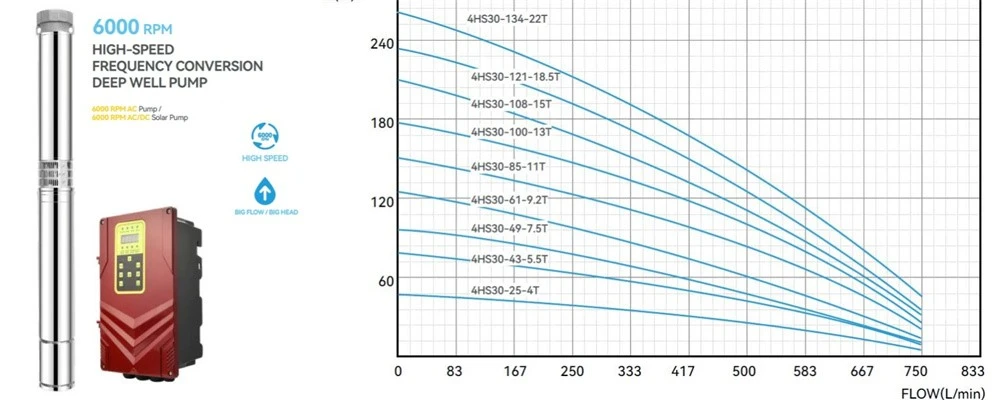

bore well solar pump 4HS30 performance



Introduction:



Introducing the high-performance Bore well solar pump product series, 4HS30. This product range covers power ratings from 2.2KW to 22KW, with a maximum horsepower of 30HP. It can support deep well applications of over 250 meters.

Whether you need to supply water to your home, irrigate your crops, or maintain the health of your livestock – our pump is up to the task. Its high-speed performance ensures that water is pumped quickly and efficiently, saving you time and money on your energy bills.

With its solar-powered design, our pump is also an environmentally friendly choice. By using renewable energy, you can reduce your carbon emissions and help to protect our planet while still achieving high-quality results.

So, if you're looking for a reliable, efficient, and eco-friendly solution for your pumping needs, our AC/DC Bore well solar pump is the perfect choice.



bore well solar pump applications



Features:



We provide one-stop solution for solar powered submersible well pump system..

This brings more benefits to end users.
-Light Weight: more than 40% weight less compared with 2850RPM normal AC deep well pump

-High Head: Each impeller rated head is more than 4 times of 2850 RPM normal AC deep well pump

-Big Flow: rated rang 6-30 cubic meter with 4 inch pump body

-Save energy: save more than 25% energy than normal AC pump

-Low Installation cost: Easy to install and work stable, save 25-45% cost

-Low shipping cost: Less weight helps save more than 40% cost less.

-Multiple Protection: Overload protection, over current protection, underload protection, under voltage protection, reverse connect protection, thermal protection, well shortage water protection, tank full protection, and soft start.

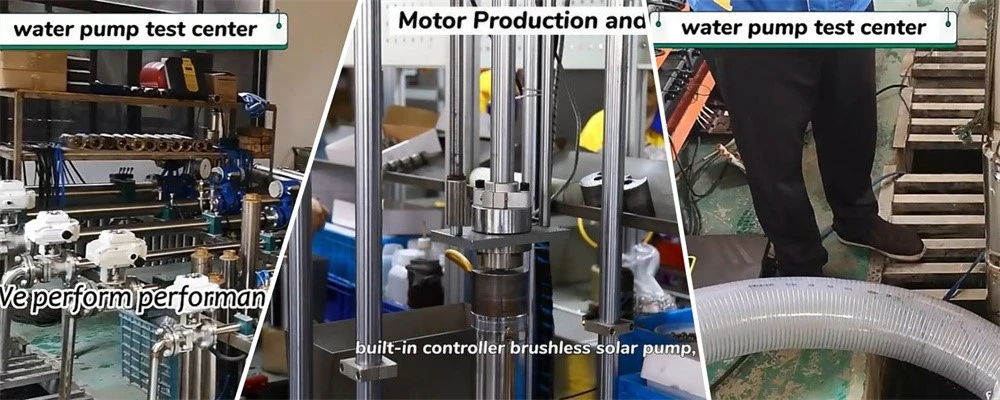

water pump test and motor production



Hot Tags: borewell solar pump, China borewell solar pump manufacturers, suppliers, factory, Solar Pump For Borewell, Bore Well Jet Pump, Electric Borehole Pump, Solar Borehole Pumps, Borewell Pump, Submersible Borehole Pumps

MODEL NO. POWE OUTLET m3/h 0 5 10 15 20 25 30 35 40 45 Pump Weight Pump Height
380V KW HP L/min 0 83 167 250 333 417 500 583 667 750 Kg mm
4HS30-25-4T 4 5.5 3" Height
(m)
46 45 41 38 35 31 25 19 12 4 16 834
4HS30-43-5.5T 5.5 7.5 77 73 68 62 56 51 43 36 23 5 19 966
4HS30-49-7.5T 7.5 10 98 93 86 78 66 58 49 38 27 6 22.5 1135
4HS30-61-9.2T 9.2 12.5 125 120 110 99 86 73 61 47 33 10 25.5 1267
4HS30-85-11T 11 15 151 145 136 124 113 100 85 70 50 20 28.7 1399
4HS30-100-13T 13 17.5 178 173 161 147 130 115 100 81 57 25 31.3 1522
4HS30-108-15T 15 20 210 200 187 169 146 126 108 89 62 30 35.7 1684
4HS30-121-18.5T 18.5 25 236 225 210 190 164 141 121 100 68 35 40 1841
4HS30-134-22T 22 30 262 250 233 211 182 156 134 111 75 39 44.3 2000
