Bore Well Submersible Pump
video

Bore Well Submersible Pump

With power options ranging from 2.2-22KW, and a head capacity of up to 300m, this pump is perfect for all deep well water extractions, mining drainage, and river water intake needs. Whether it's for agricultural, domestic or industrial use.
Send Inquiry
Add To Inquiry

Description

Technical Parameters

Bore well Submersible Pump 4HS18 ACDC

Model: 4HS18 ACDC

Descriptions:

This 4HS18 ACDC is high performance solar powered bore well submersible pump,target for deep well scenarios. Introducing our state-of-the-art, high-speed bore well submersible pump, designed to meet the most demanding industrial needs. With power options ranging from 2.2-22KW, and a head capacity of up to 300m, this pump is perfect for all deep well water extractions, mining drainage, and river water intake needs. Whether it's for agricultural, domestic or industrial use.



using water pump for water intake in desert



Introduction:



The high-performance solar powered bore well submersible pump product series, 4HS18 covers power ratings from 2.2KW to 22KW, with a maximum horsepower of 30HP. It can support deep well applications of over 300 meters.This AC DC solar bore well submersible pump is engineered to ensure maximum efficiency and reliability in all its operations. It is built to withstand even the toughest conditions, delivering consistently high performance and outstanding results. Don't miss out on our remarkable pump; give your operations a boost with the High-Speed Submersible Pump today!



solar deep well pump for tea plant



Features:



We provide one-stop solution for solar powered submersible well pump system..

This brings more benefits to end users.
-Light Weight: more than 40% weight less compared with 2850RPM normal AC deep well pump

-High Head: Each impeller rated head is more than 4 times of 2850 RPM normal AC deep well pump

-Big Flow: rated rang 6-30 cubic meter with 4 inch pump body

-Save energy: save more than 25% energy than normal AC pump

-Low Installation cost: Easy to install and work stable, save 25-45% cost

-Low shipping cost: Less weight helps save more than 40% cost less.

-Multiple Protection: Overload protection, over current protection, underload protection, under voltage protection, reverse connect protection, thermal protection, well shortage water protection, tank full protection, and soft start.

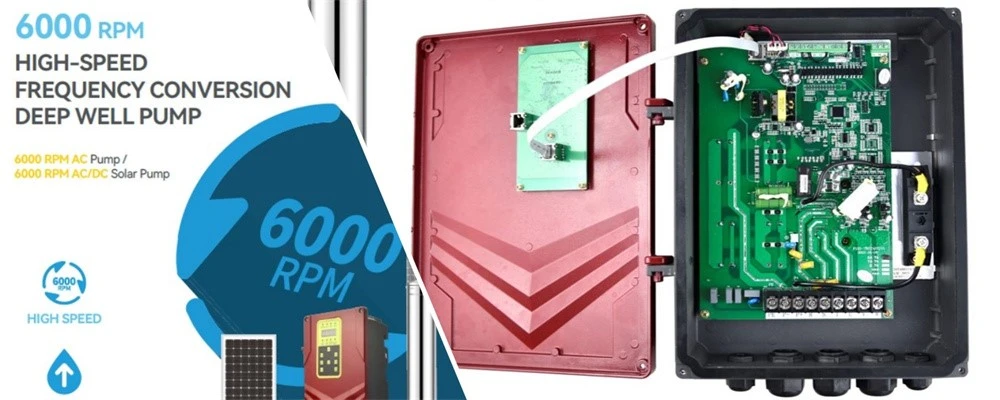

solar deep well pump inside design



FAQ:



Q: Are you a direct manufacturer and exporter from China?

A: Yes, we are. We have our own factory and international sales department. We produce all products all by ourselves.



Q: How can I buy your pumps?

A: Please send us inquiries on Alibaba, or email us, and you can give us a call to tell us your needs, we’ll reply you as soon as possible.



Q: What's your delivery time?

A: 1.The samples can be sent to you within 3-5 days. 2.The batch order can be shipped to you within 5-15 days after order confirmation.



Q: What’s your payment terms?

A: T/T, L/C, D/A, D/P etc.



Q: Can I check the quality of goods before delivery?

A: Yes, either you or your colleagues, or a third party is welcomed to do inspection in our factory before delivery.



Q: Which shipping methods do you use?

A: We offer shipping, air freight, land transportation and express delivery. The specific options depend on the quantity of the order.



Q: How can I get a sample from you?

A: We can send the sample to you or to your designated shipping agent, while you pay the freight.



Hot Tags: bore well submersible pump, China bore well submersible pump manufacturers, suppliers, factory, Electric Borehole Pump, Solar Powered Borehole Pump, Solar Pump For Borewell, Borewell Pump, Borehole Solar Pumps, Small Borehole Pump

MODEL NO. POWE OUTLET m3/h 0 3 6 9 12 15 18 21 24 27 Pump Weight Pump Height
380V KW HP L/min 0 50 100 150 200 250 300 350 400 450 Kg mm
4HS18-42-4T 4 5.5 2" Height
(m)
72 68 63 60 56 50 42 34 27 17 7.9 828
4HS18-64-5.5T 5.5 7.5 100 95 90 95 80 73 64 57 43 34 18.6 930
4HS18-75-7.5T 7.5 10 126 120 115 106 98 88 75 61 52 41 21.8 1069
4HS18-93-9.2T 9.2 12.5 152 143 135 130 121 108 93 78 64 50 24.6 1172
4HS18-130-11T 11 15 207 195 186 176 166 152 130 110 92 60 28.1 1327
4HS18-140-13T 13 17.5 229 216 207 192 179 162 140 119 97 70 30.4 1420
4HS18-156-15T 15 20 264 251 240 227 209 186 156 135 116 90 34.5 1553
4HS18-190-18.5T 18.5 25 290 276 263 250 236 219 190 161 139 112 38.6 1681
4HS18-207-22T 22 30 316 301 287 272 257 239 207 175 151 122 43 1810
