DC Solar Borehole Pumps
video

DC Solar Borehole Pumps

Introducing our DC pump, designed with power and performance in mind. Ranging from 180-3000W, this pump boasts a maximum 1-inch outlet and a max flow of 40m3/h. Perfect for Farm Irrigation and family water well using DC Solar Borehole Pumps, it is widely used for agriculture irrigation, industry water supply, and much more.
Send Inquiry
Add To Inquiry

Description

Technical Parameters

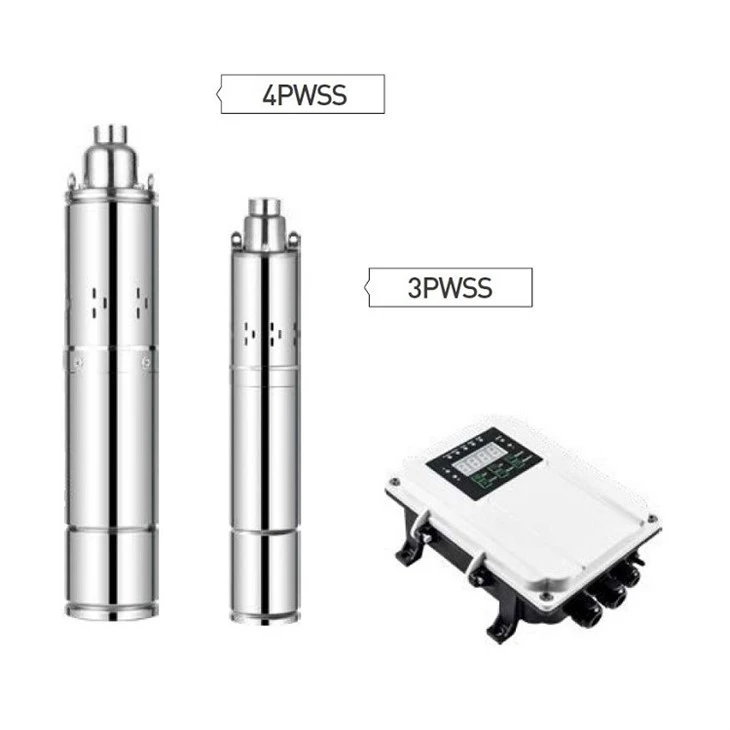

DC Solar Borehole Pumps 3PWSS 4PWSS DC

Model: 3PWSS 4PWSS DC

Descriptions:

This 3PWSS 4PWSS DC series is high performance DC Solar Borehole Pumps.

Introducing our DC pump, designed with power and performance in mind. Ranging from 180-3000W, this pump boasts a maximum 1-inch outlet and a max flow of 40m3/h. Perfect for Farm Irrigation and family water well using DC Solar Borehole Pumps, it is widely used for agriculture irrigation, industry water supply, and much more.



DC Powered submersible well pump series application



Introduction:



We are excited to introduce the high-performance DC Solar Borehole Pumps product series 3PWSS 4PWSS DC . This product range covers power ratings from 180W to 3000W, with a maximum 1inch outlet, 40m3/h max flow. It can support deep well applications of over 250 meters.

This pump is the perfect solution for those looking to harness the power of the sun for efficient and sustainable water pumping. It's reliable and efficient, providing a consistent flow of water to meet all your needs.

Not only is it a smart choice for the environment, our DC Solar Borehole Pumps are also extremely durable and effective. It is crafted with the highest quality materials to ensure long-lasting use and supreme performance. Whether you're a farmer, industry professional, or just need a reliable water supply, this pump is the ideal choice for you.

So don't wait any longer and order your DC Solar Borehole Pumps today! It's time to take the next step towards an eco-friendly and efficient water pumping solution.

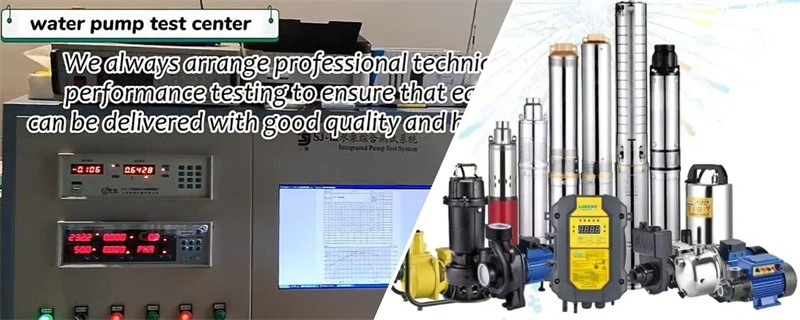

water pump test center



Features:



We provide one-stop solution for solar powered submersible well pump system..

This brings more benefits to end users.
▷ Permanent magnet DC brushless motor, efficiency improved by 20~30%.

▷ Longer use life than normal electrical AC pump motor.

▷ High efficiency intelligent MPPT controller makes pump start and stop working automatically.

▷ Overload protection, over current protection, underload protection, under voltage protection, reverse

connect protection, thermal protection, well shortage water protection, soft start.

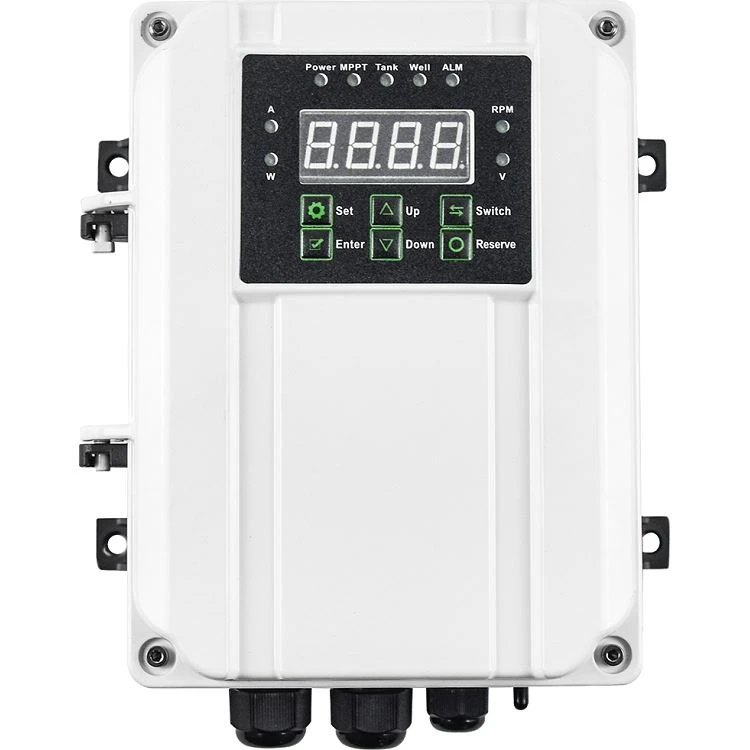

▷ Controller LED screen displays voltage, current, power, speed RPM, adjusting speed, error code.

▷ Controller waterproofing grade IP54.

▷ Ambient temperature: -15~70 °C.


solar powered submersible well pump manufacture

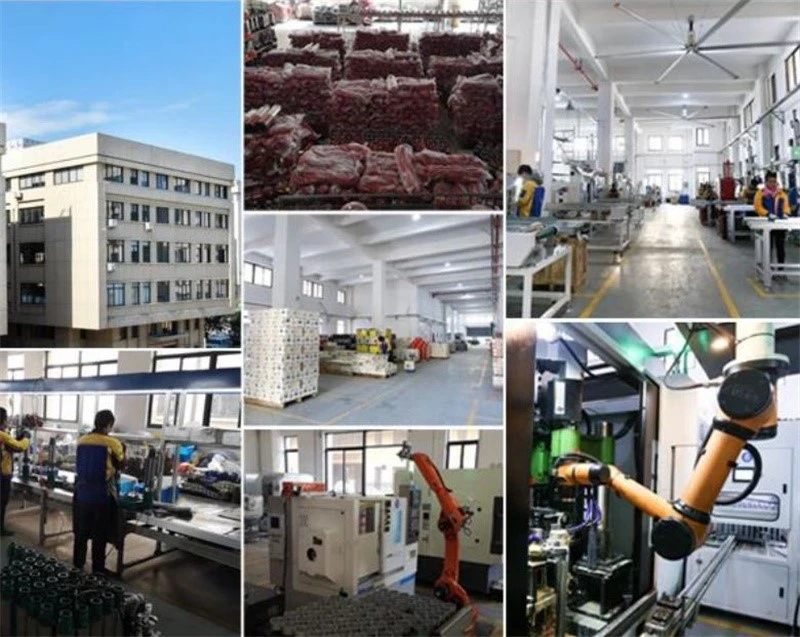

solar pump manufacture picture



Hot Tags: dc solar borehole pumps, China dc solar borehole pumps manufacturers, suppliers, factory, Solar Pump For Borewell, Bore Well Submersible Pump, Borewell Water Pump, DC Borewell Pump, DC Borehole Pumps, Deep Bore Well Submersible Water Pump

3''4''DC SS SCREW SOLAR PUMP

MODEL NO. MAX FLOW (M3) MAX HEAD (M) VOLTAGE(V) POWER(W)
3PWSS1.0-55-24-180 1.0 55 24 180
3PWSS1.2-65-24-250 1.2 65 24 250
3PWSS1.5-95-48-400 1.5 95 48 400
3PWSS1.9-110-72-600 1.9 110 72 600
3PWSS2.0-130-96-750 2.0 130 96 750
4PWSS2.5-40-24-250 2.5 40 24 250
4PWSS3.0-60-48-400 3.0 60 48 400
4PWSS2.3-95-72-600 2.3 95 72 600
4PWSS3.6-110-96-750 3.6 110 96 750
