Solar Submersible Borehole Pumps

Our High Speed, Solar Submersible Borehole Pumps System is the ideal solution for agricultural farm irrigation. With power ratings ranging from 2.2KW to 22KW, and a maximum horsepower of 30HP, this range is capable of supporting deep well applications that go beyond 550 meters.
Send Inquiry
Add To Inquiry

Description

Technical Parameters

Solar Submersible Borehole Pumps 4HS10 ACDC

Model: 4HS10 ACDC

Descriptions:

This 4HS10 ACDC is high performance Solar Submersible Borehole Pumps.

Our High Speed, Solar Submersible Borehole Pumps System is the ideal solution for agricultural farm irrigation. With power ratings ranging from 2.2KW to 22KW, and a maximum horsepower of 30HP, this range is capable of supporting deep well applications that go beyond 550 meters.

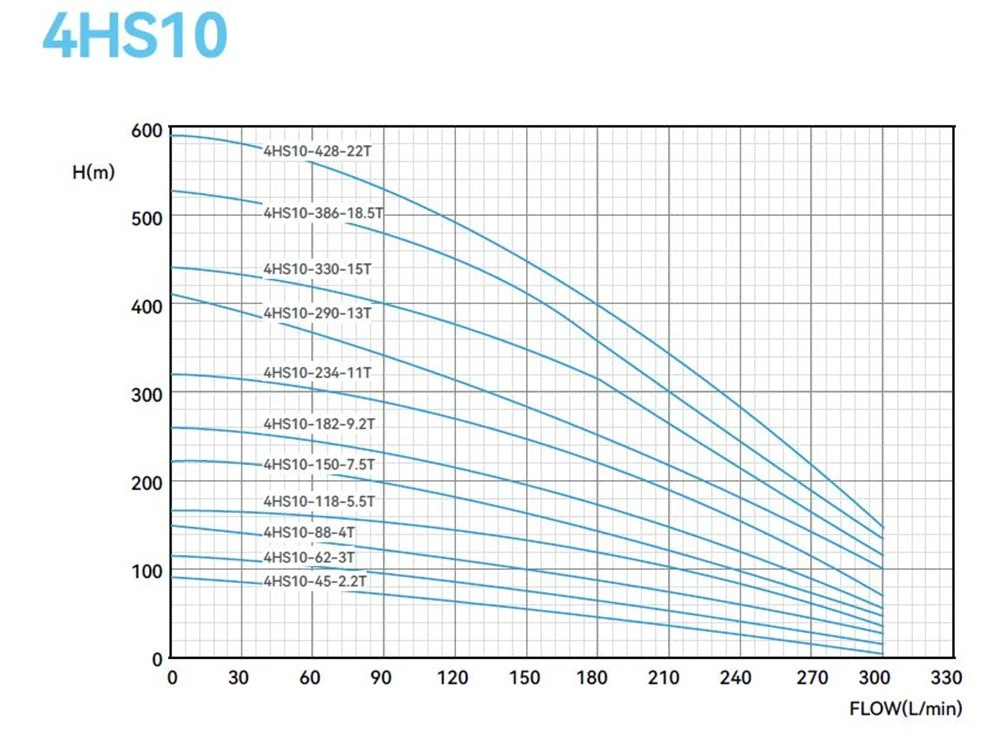

AC DC Solar Submersible Pump performance





Introduction:



We are excited to introduce the high-performance Solar Submersible Borehole Pumps product series, 4HS10. Our submersible pumps are designed to provide high-speed water flow while conserving energy through the use of solar power. This feature makes them the perfect solution for remote areas where grid power is not available, and they can operate independently all year round.

With this pump system, farmers can efficiently use water from deep wells to irrigate crops, increase yields, and get the most out of their land. Our pumps are reliable and durable, built to last for years and cut maintenance costs.

We take pride in providing top-quality products that have been rigorously tested to ensure increased productivity and efficiency. Our submersible pumps have been designed with the farmers' needs in mind, and we are confident that they will deliver outstanding performance when it comes to pumping water from deep wells.

In conclusion, our High Speed, Solar Submersible Borehole Pumps System is a must-have for farmers who are serious about maximizing crop yields and increasing their productivity. Our pumps are efficient, reliable, and built to last, bringing convenience to your farm and enabling you to take your agricultural business to the next level. Get in touch with us today to learn more about our range of products.



solar pump other scenarios



Features:



We provide one-stop solution for solar powered submersible well pump system..

This brings more benefits to end users.
-Light Weight: more than 40% weight less compared with 2850RPM normal AC deep well pump

-High Head: Each impeller rated head is more than 4 times of 2850 RPM normal AC deep well pump

-Big Flow: rated rang 6-30 cubic meter with 4 inch pump body

-Save energy: save more than 25% energy than normal AC pump

-Low Installation cost: Easy to install and work stable, save 25-45% cost

-Low shipping cost: Less weight helps save more than 40% cost less.

-Multiple Protection: Overload protection, over current protection, underload protection, under voltage protection, reverse connect protection, thermal protection, well shortage water protection, tank full protection, and soft start.



deep well pump for irrigation



Hot Tags: solar submersible borehole pumps, China solar submersible borehole pumps manufacturers, suppliers, factory, Solar Pump For Borewell, Submersible Borehole Pumps, Borewell Solar Pump, Electric Borehole Pump, Bore Well Submersible Pump, Solar Borehole Pumps

MODEL NO. POWE OUTLET m3/h 0 1.8 3.6 5.4 7.2 9 10.8 12.6 14.4 16.2 18 Pump Weight Pump Height
380V KW HP L/min 0 30 60 90 120 150 180 210 240 270 300 Kg mm
4HS10-45-2.2T 2.2 3 2" Height
(m)
82 80 76 70 60 50 40 30 22 12 4 13.1 706
4HS10-62-3T 3 4 110 105 101 93 82 68 55 43 32 22 10 14.4 764
4HS10-88-4T 4 5.5 140 130 127 120 110 95 75 60 45 33 21 15.8 858
4HS10-118-5.5T 5.5 7.5 161 158 163 147 139 125 110 91 72 51 30 18.5 910
4HS10-150-7.5T 7.5 10 217 210 205 197 183 163 131 105 83 57 37 22 1071
4HS10-182-9.2T 9.2 12.5 255 243 238 227 214 193 168 140 107 81 45 24.5 1159
4HS10-234-11T 11 15 313 303 297 286 271 249 218 181 145 107 62 27.9 1285
4HS10-290-13T 13 17.5 411 391 386 370 349 313 266 214 168 130 95 30.8 1439
4HS10-330-15T 15 20 440 424 418 402 383 351 309 256 204 156 108 34.8 1556
4HS10-386-18.5T 18.5 25 528 510 501 485 458 415 357 291 235 181 125 39.4 1744
4HS10-428-22T 22 30 586 566 556 538 508 461 396 323 261 201 138 44 1895
